Innovation in Motion

System Capabilities

  • Panel or Enclosure Mounted Servo Controller. Multi-axis also available
  • Servo Motor
  • Fully Configurable Actuator & Controls
  • Factory Programmed
  • Heat Dissipation Analysis: cooling added as required
  • Cable / Harness Designed to Length
    • Factory Tested, Cycled & Tuned
  • Precision Feedback Devices
    • Pressure (Force)
    • Position
  • Manual(s) & Wiring Diagram(s)
  • Ability to integrate customer supplied motors and/or devices

Deliverables

  • As shipped 3D CAD model(s) provided
  • Actuator drawing(s) including electrical connections
  • Actuator tested & tuned ready for mounting & operation
  • Electrical panel / box wired & tested with the actuator
  • Cables & Harnesses provided as required
  • Controls instruction manual

Control Capabilities

  • Position Control
  • Force Control
  • Position & Force Control
  • Position Control with Force & Speed Limiting
  • Four Quadrant Motion Control
  • Compound Moves
  • Multiple Gain Sets
  • Coordinated Motion
  • Sequencing & Custom Programming
  • GUI Development: Touchscreen / VB Applications
  • Diagnostics as desired
  • Field Bus Integration: AB, Siemens, MTS, PC, AutomationDirect etc.



Download Schematics and Panel Layout PDF (see pages 8 & 9)

Control Configurations

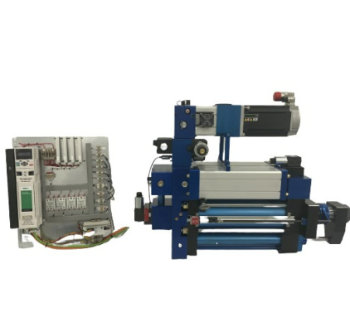

solution enclosureSubpanel

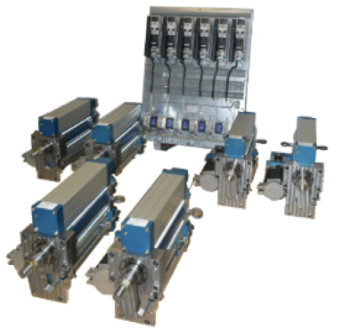

solution enclosureMulti-Axis (2 axis shown)

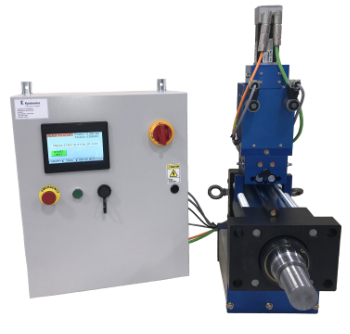

solution enclosureEnclosure with HMI Option
