Kyntronics is at the forefront of actuation technology innovation, and our Hybrid Linear Actuator (SHA) is transforming the industry. By integrating the best attributes of hydraulic and electric actuators, the SHA overcomes common challenges and sets a new standard for efficiency, reliability, and precision.
The Challenges of Traditional Actuators
Conventional actuators have inherent limitations that affect operational performance and cost-effectiveness:
- Hydraulic Actuators: While capable of delivering high force, these actuators are prone to leaks, require extensive maintenance, and involve complex systems with pumps, hoses, and valves. Their inefficiency leads to higher operational costs.
- Electro-Mechanical Actuators (EMAs): Offer precise motion control but are susceptible to premature wear and damage from shock loads. This results in frequent maintenance and reduced long-term reliability.
To address these challenges, an advanced actuation technology is essential.
KYNTRONICS’ HYBRID LINEAR ACTUATOR: A REVOLUTIONARY SOLUTION

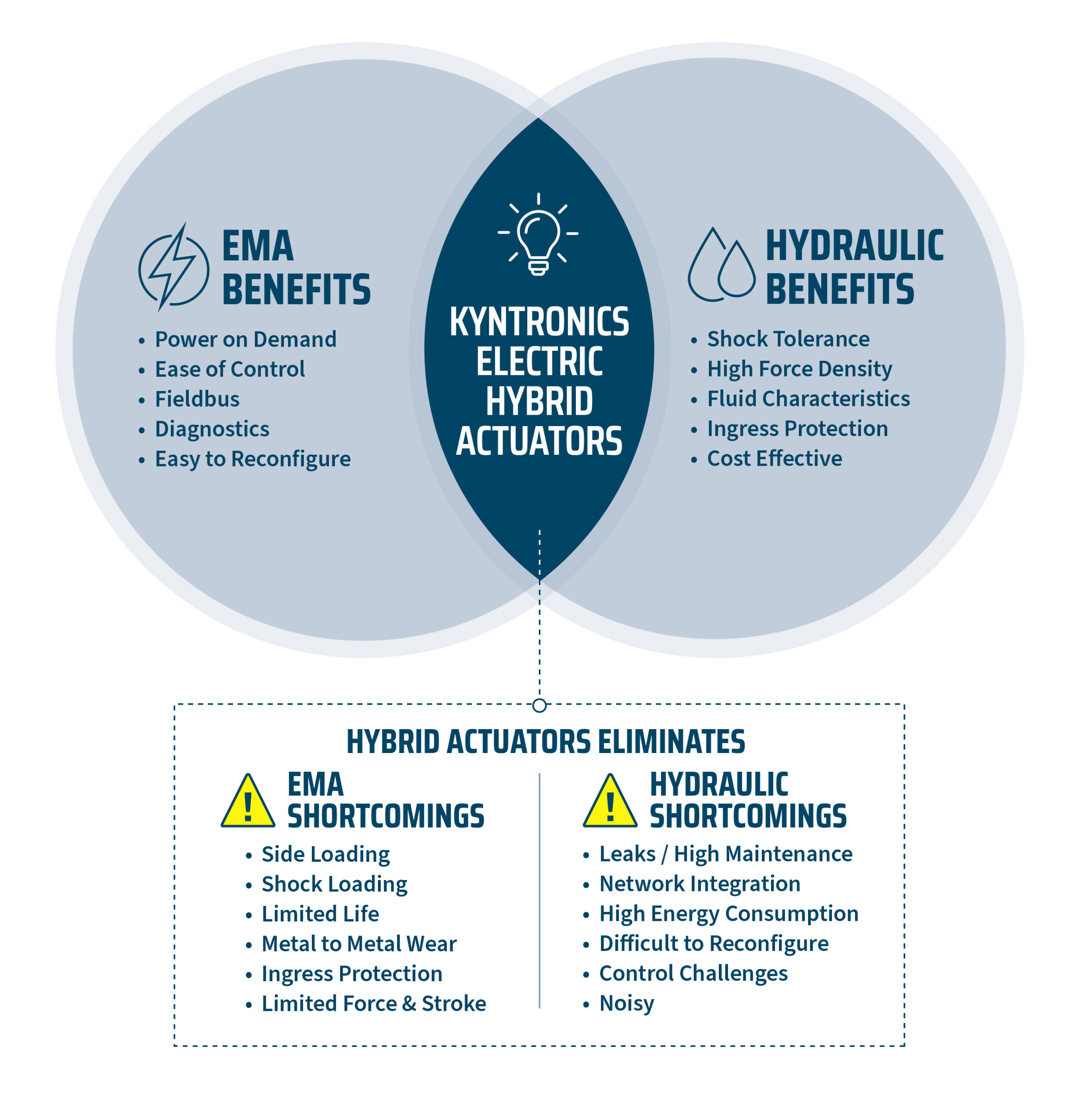

The SHA is an all-electric actuation system that integrates high-precision servo control with an integral pump and cylinder. It combines the best features of hydraulic and electro-mechanical actuation while eliminating their shortcomings. This innovative design provides several key advantages:
- High Force Capability – Delivers significantly higher force than traditional EMAs. The force range is <100 lbs. (0.4 kN) to 150,000 lbs. (667 kN)
- Speed: Up to 34.5 in/s (877 mm/s)
- Stroke Length: Up to 120 in. (3,048 mm)
- Input Power: 24–80 VDC or 120–480 VAC
- Shock Load Tolerance – Superior resistance to shock loads reducing maintenance and downtime risk.
- Energy Efficiency – Power-on-demand technology lowers energy consumption by operating only when needed.
- Minimal Maintenance – A fully sealed, leak-proof design eliminates the need for frequent servicing.
- Precision Control – Enables highly accurate control of position, force, and speed, making it ideal for demanding industrial applications.
BENEFITS OF THE HYBRID ACTUATOR
The SHA hybrid linear actuator maximizes performance, reliability, and cost savings compared to traditional hydraulic and screw-driven actuators.
- Long-Term Cost Savings – Reduced maintenance requirements and lower energy consumption lead to substantial operational savings.
- Enhanced Safety – A fully enclosed system eliminates the risk of fluid contamination or hazardous leaks.
- Increased Reliability – Designed for long-term operation with minimal downtime, ensuring consistent performance in critical applications.
INDUSTRY APPLICATIONS
The Hybrid SHA’s unique technology meets the demands of both new and retrofit situations across a wide variety of applications and industries, including:
- Presses
- Assembly
- Metal Bending
- Lifting
- Hole punching
- Material Handling
- Packaging
- Testing
- Clamping
- Extruding
- Molding
- Valve Control
UPGRADE YOUR ACTUATION SYSTEM TODAY
For businesses looking to enhance efficiency, safety, and performance in their industrial applications, Kyntronics offers expert guidance in selecting the right actuation solution.
