Innovation in Motion

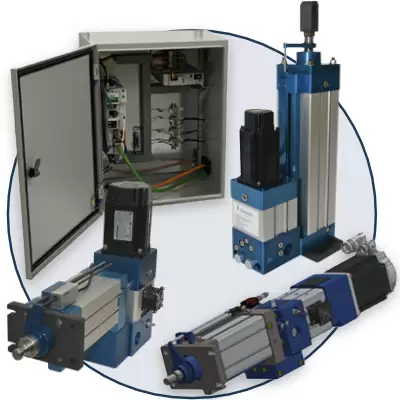

SMART Electro-Hydraulic Actuator (SHA)

Kyntronics EHA

We are Actuation experts with extensive experience in the industrial, automotive, aerospace and medical equipment markets.

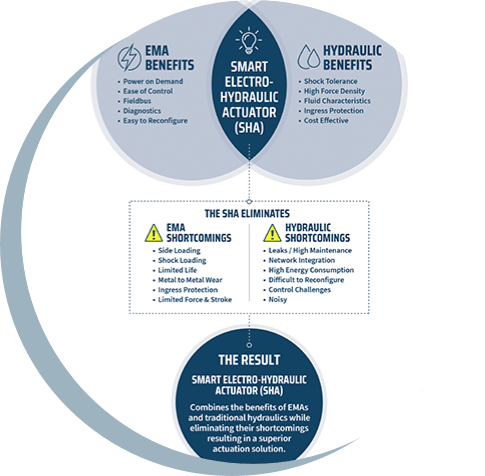

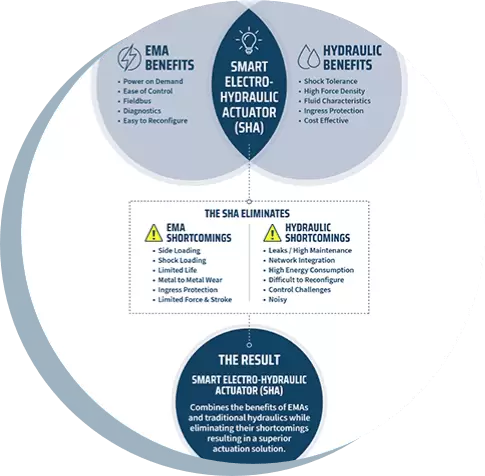

Kyntronics modular mechanical and electro hydraulic actuator design provides the highest force-density combined with precision control in a cost-effective, an all-in-one package. Our SMART Electro-hydraulic actuators provide precision actuation systems for a wide range of high-speed and high-force requirements.

Our Applications Engineers work with your team to configure the best electro-hydraulic actuator that best meets your performance and packaging needs and that will make your product better and more competitive.

View our S-Series CAD Models

View our E-Series CAD Models

S-Series SMART Electro-Hydraulic Actuators

E-Series SMART Electro-Hydraulic Actuator

H-Series High-Speed/High-Force SMART Hydraulic Actuators

H-Series High-Speed/High-Force SMART Electro-Hydraulic Actuators

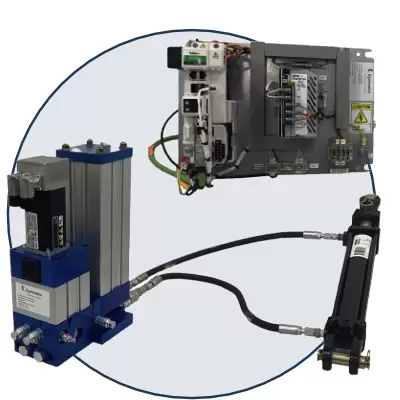

Servo Power Units

Electro-Mechanical SMART Actuators for OEMs

What Kyntronics’ Customers are Saying

Kyntronics worked with the RMD Systems team to design a series of custom actuators tailored to our unique application requirements. The self-contained nature of the actuators provides the power and force of a hydraulic solution with the controllability and ease of integration of an electro-mechanical solution. The highly integrated design of the actuator allowed us to optimize the design of the robot structure considerably. Kyntronics provided us with state-of-the-art hardware on an accelerated development timeline that helped us complete our deliverables to our defense customer.

Kyntronics worked with our engineers to develop a custom actuator that fit our space and duty cycle requirements. The closed loop system not only gives us the power we need for rigid material cutting but the servo control provides for accurate speed and acceleration control. Force feedback allows us to monitor die sharpness as well as provide data for FDA validation to our customers. We see a great future using these actuators on all our die cut platforms.

The biggest advantage of Kyntronics’ SHA was the very nature of the system’s self-contained, modular configuration – delivering all required functionality and low-end force control we need for testing… it saved us many days of assembly / set-up / testing / tuning, and cost as well. Also, this system provides our customer the ability to test their products without using external hydraulic power which makes it very portable and manageable.

Working with Kyntronics was a great experience. This type of product is new to our company and they were very helpful and patient with any questions we had. We decided to install the optional HMI unit with the actuator making set up of our tooling painless. The parts we are forming among 6 tooling stations are very consistent hit after hit. The precision is greater than any other forming method we have used. We are overall very pleased with the actuators design and performance.

Applications

Kyntronics partners with OEMs in a range of industries to customize actuation systems that suit specific needs. Ask us how our engineering team can partner with you to create complete Electro-Hydraulic Actuator (EHA) or Electro-Mechanical Actuator (EMA) packages providing a differentiating solution, reducing your cost and accomplishing your business goals.

Featured Application

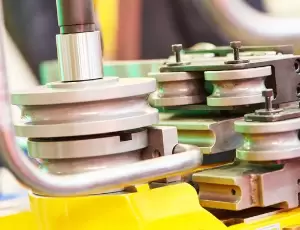

Automated Metal Forming Line: Featuring Clamping, Punching and Piercing with Rockwell Automation Servo Motor Integration and AOI (Add-On-Instruction)

Application: Metal Forming Equipment

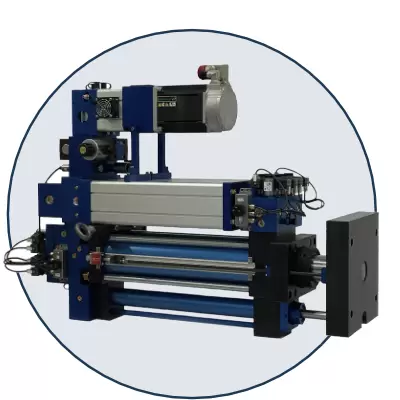

Product: S-Series SMART Electro-Hydraulic Actuator

Learn how Kyntronics helped an Appliance Manufacturer and Special Machine Builder eliminate hydraulics from their new metal forming line and the new Kyntronics AOI for Rockwell Automation servo motors and drives.

Featured Video

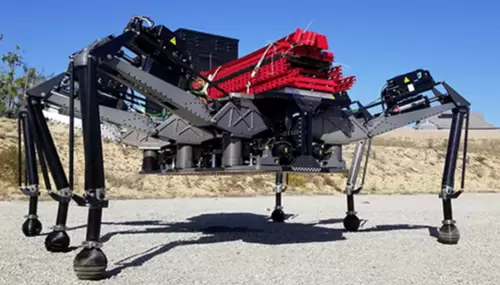

It May Look Like an Alien Creature . . . but it is REAL!

Kyntronics’ self-contained actuator technology provided the power, control and ease of integration RMD Systems needed for this innovative robotic material delivery vehicle. RMD Systems' large robotic delivery vehicle with Kyntronics’ custom SMART electro-hydraulic actuators, is capable of transporting a sensitive payload of over 2,000lbs.

Click Here to Watch Video

Autonomous Field Supply Vehicle (AFSV) using Kyntronics SMART Electro-Hydraulic Acuators

Latest News & Press Releases

News & Events

Kyntronics Wins LEAP Award in Motion Control Category

We are proud to announce we have won the Design World LEAP Award for engineering achievement. We have earned the Silver Award in the Motion Control category for a derivative version of the SHA. Working in collaboration with RMD Systems, our electro-hydraulic actuators met the complex actuator requirements for this autonomous field robot capable of transporting over 2,000 LBs of sensitive payload over rugged terrain. View our actuator project video and read the success story about the Autonomous Field Supply Vehicle (AFSV).

Kyntronics provides actuation power for Autonomous Field Supply Vehicle

SOLON, OH — May 27, 2022– Transporting heavy sensitive payloads over land has always been a challenge due to the intricacies of terrain changes. As part of an Autonomous Field Supply Vehicle (AFSV) project, Kyntronics provided 18 actuators for customer; RMD Systems, to help meet those challenges.

Quick Access

Information about our products

You can view information about our products, get technical information, CAD drawings and Case Studies by visiting our Product Pages. See links below:

S-Series CAD Models: Up to 85,000 lbf (377 kN), up to 120” (3,048 mm) stroke length, up to 34.5 in/s (877 mm/s) speed, 230, 460 VAC
E-Series CAD Models: Up to 85,000 lbf (377 kN), up to 120” (3,048 mm) stroke length, up to 34.5 in/s (877 mm/s) speed, voltage options – 24, 36, 48, 60, 80 VDC
H-Series (High Speed / High Force) Models: Up to 170,000 lbf (775 kN), up to 24” (610 mm) stroke length, up to 45 in/s (1,159 mm/s), 120, 240, 460 VAC
