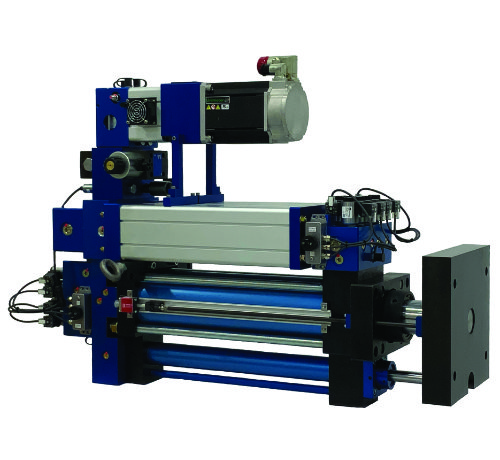

H-Series SMART Electro-Hydraulic Actuator: CAD Models & Specifications
A High Speed Actuator and High Force Linear Actuator System in an Integrated Package
H-Series Features:
- High-Speed Cylinder for fast extend/retract operation
- High Force Cylinder for the high-load component of the cycle
- Compact / Integrated Accumulator
- Precision Controlled Brushless Servo Motor
- Servo-Controlled, Precise Displacement,Bi-Directional Variable Speed Pump
- High-Resolution Position Sensor
- Pressure Sensor for Force Control Operation
- Manifold with Integral Valve Controls
- Servo Drive / Motion Controller Package
- Fieldbus Interface
- IoT Compatible
- Cabinet or Subplate options
H Series High-Speed/High-Force Actuators
For H-series Models, please contact the factory.
| High Force Segment Maximum Force | High Speed Segment Maximum Extend Force | High Speed Segment Maximum Retract Force | High Force Segment Maximum Speed | High Speed Segment Maximum Extend Speed | High Speed Segment Maximum Retract Speed | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model Series | lbf | kN | lbf | kN | lbf | kN | in/s | mm/s | in/s | mm/s | in/s | mm/s |
| 1H19C15-32-34 | 24,765 | 110 | 4,232 | 19 | 151 | 1 | 2.5 | 64 | 11.7 | 298 | 21.1 | 536 |
| 1H19C15-40-34 | 37,514 | 167 | 4,399 | 20 | 1,182 | 5 | 1.7 | 42 | 11.7 | 298 | 21.1 | 536 |
| 1H19C15-50-34 | 58,616 | 261 | 3,055 | 14 | 710 | 3 | 1.1 | 27 | 10.0 | 254 | 10.0 | 254 |
| 1H19C15-60-34 | 84,407 | 375 | 603 | 3 | 241 | 1 | 0.7 | 19 | 10.5 | 267 | 7.5 | 191 |
| 1H19C20-32-34 | 24,765 | 110 | 8,930 | 40 | 6,361 | 28 | 2.5 | 64 | 6.6 | 167 | 8.8 | 223 |
| 1H19C20-40-34 | 37,514 | 167 | 8,723 | 39 | 6,038 | 27 | 1.7 | 42 | 6.6 | 167 | 8.8 | 223 |
| 1H19C20-50-34 | 58,616 | 261 | 8,212 | 37 | 5,225 | 23 | 1.1 | 27 | 6.6 | 167 | 8.8 | 223 |
| 1H19C20-60-34 | 84,407 | 375 | 7,184 | 32 | 3,557 | 16 | 0.7 | 19 | 6.6 | 167 | 8.8 | 223 |
*Note: This is a Representative Sample of the High Speed / High Force Actuator Product Series, Consult Factory for Additional Models
For Additional Information on the Operational Performance of H-Series Actuators contact us.
