An Appliance manufacturer ordered a new press line from a machine builder to produce precision sheet metal panels for a new product launch. The manufacturer wanted to eliminate the use of hydraulics due to the advantages of being environmentally cleaner, providing significant energy savings, reducing floor space required and quieter operation.

The new product had stringent process quality requirements for the metal forming presses that would require precise control of force and position during the servo press stroke.

The “no hydraulics” mandate created unique challenges for the Machine Builder due to the high forces required of up to 170,000 Lbs (756 kN) in the metal forming stations.

In addition, the system would need to seamlessly integrate with Rockwell Automation motors and servo drives.


The Machine Builder considered using electro-mechanical actuators (EMA) on the metal forming press but found that the large size and high cost of EMA technology was prohibitively expensive and would not meet their project requirements. In addition, there were concerns about EMA screw life due to the “spike loads” the actuators would be subject to during production.

After careful consideration, the Machine Builder selected Kyntronics SMART Electro-Hydraulic Actuator (SHA) for the servo press stations on the new machine. The SHAs were rated for 85,000 Lbf (358kN) of force and were provided in an in-line configuration mounted to the top of the press.

For the primary servo press station, two 85,000 Lb SHAs were synchronized together providing 170,000 Lbs of force. The SHA provides precise and repeatable control of applied force and position which was critical for the quality required from the new machine.

The SHAs incorporated Rockwell Automation (Allen Bradley) Servo Motors and Drives that met the customers’ control specifications to produce precision sheet metal panels.


  • The SHAs eliminated the need for an HPU and hydraulic infrastructure on the new machine resulting in a clean working environment, quieter operation, and substantial energy savings.
  • Part quality exceeded the new product’s stringent requirements, even at the high forces required for the metal forming operations.
  • The SHA provided very reliable, maintenance-free operation despite the 'shock loads' that were present in the metal forming operations.

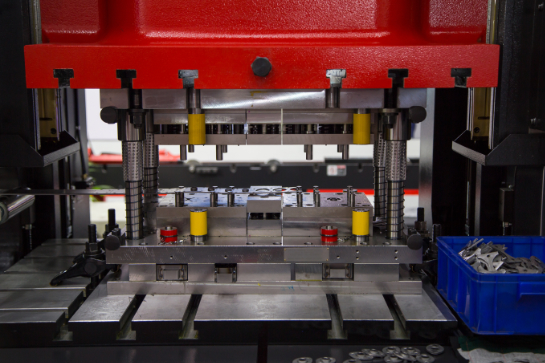

sheet metal forming presses

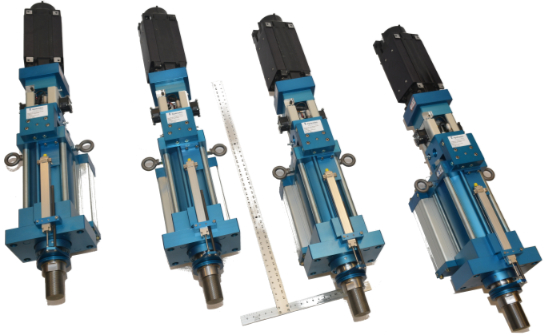

sheet metal forming presses4 Kyntronics In-line SMART Electro-Hydraulic Actuators (SHA) rated at 85,000 Lbf (358kN) Force
